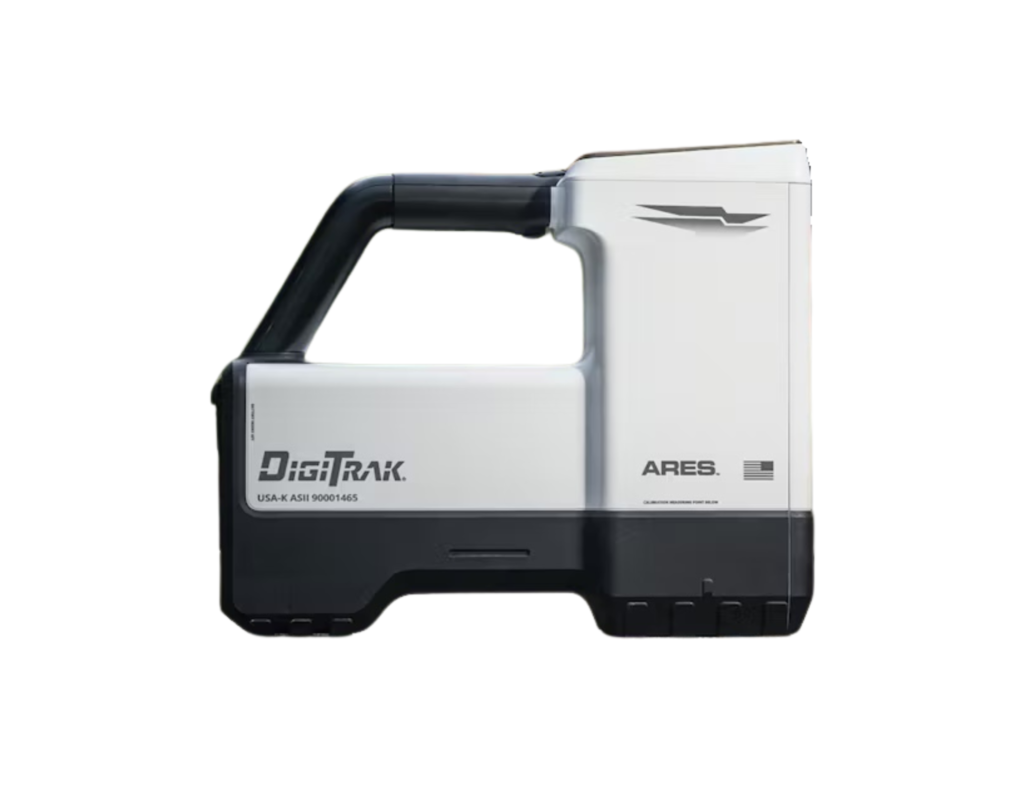

DIGITRAK ARES

Built on the foundation of Falcon, ARES takes the next leap forward as the industry’s first AI-powered locator. Every jobsite brings unique interference challenges, but with more memory, faster processing, and the ability to scan your entire bore path in real time, ARES does the hard work for you—automatically finding the best options to cut through interference. With just the press of a button, anyone on your crew, no matter their experience, can walk with confidence knowing ARES will get it right.

• Onboard AI that can analyze your job site in real time and selects the best frequencies
• 4x faster set-up
• Wideband, Sub-k rebar, fluid pressure, and Bluetooth connectivity all in one
• 2x bigger screen
• Built-in GPS tracking so you can monitor its location when needed

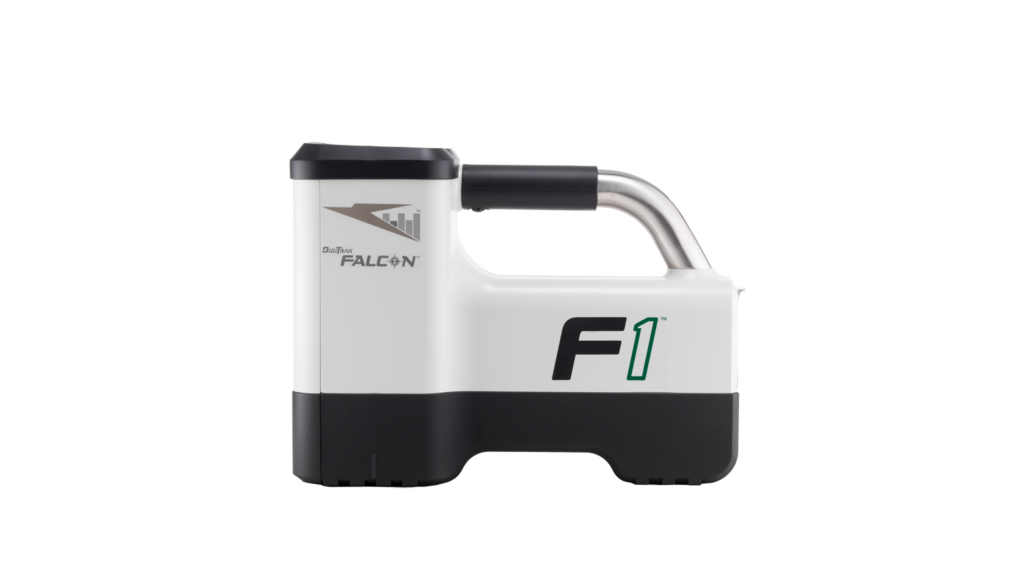

DIGITRAK FALCON F1

Battle active interference with our simple yet sophisticated F1 system. Increase bore efficiency and reduce downtime, saving thousands of dollars per year. The Falcon F1 System is compatible with the 8.4″ or 10.4″ Aurora Display.

• Active Interference Analysis
• Frequency Optimization (50 ft depth/65 ft data range)
• Falcon technology at an entry-level price

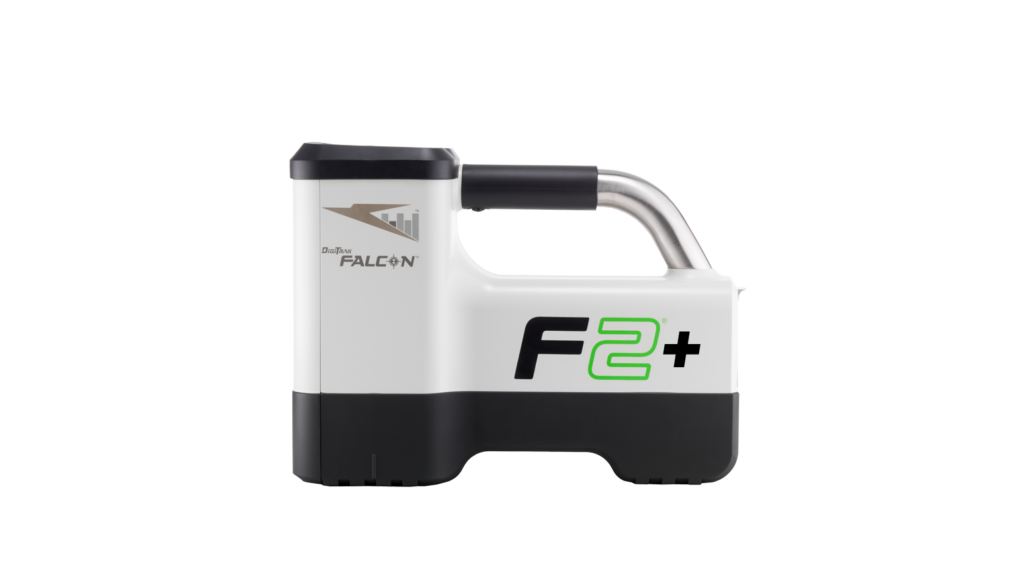

DIGITRAK FALCON F2+

Scan for interference between 4.5 and 45 kHz and choose the two best bands. Depth and data readings through traffic signal loops, power lines, and invisible dog fences

• Maintain depth and data readings through interference sources such as Traffic loops, power lines, and invisible dog fences
• Easy Infrared Pairing
• Ball-in-the-Box™ guidance technology you already know
• Active Interference Analysis
• Frequency Optimization (100 ft depth/125 ft data range)
• Max Mode Boosts Data Range and Stabilizes Depth Readings

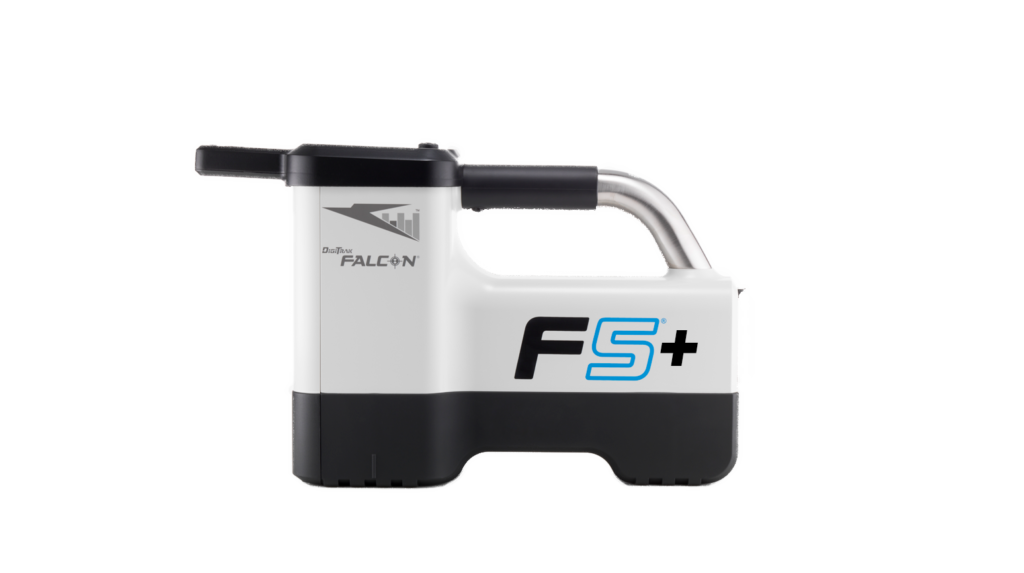

DIGITRAK FALCON F5

The high-performance Falcon F5 tackles complex jobs with active and passive interference using the most advanced toolset available. With unseen interference sources, Sub-k rebar capabilities and the option of integrated iGPS options, this F5 locator for sale is the perfect transmitter location system to help your team with the most difficult of drill rig jobs.

• Unseen interference sources
• Active Interference Analysis
• Frequency Optimization (125 ft depth/150 ft data range)
• Sub-k™ rebar capability
• Ball-in-the-Box™ guidance technology you already know
• Log-While-Drilling (LWD)
• DigiTrak DataLog Management (DDM)
• Integrated iGPS (optional)

DIGITRAK FALCON TRANSMITTERS

Transmitter reliability is an essential element of success for HDD contractors. Transmitter failures result in lost productivity and missed deadlines. DCI designed the first transmitter to send roll and pitch to a receiver and hasn’t stopped innovating since.

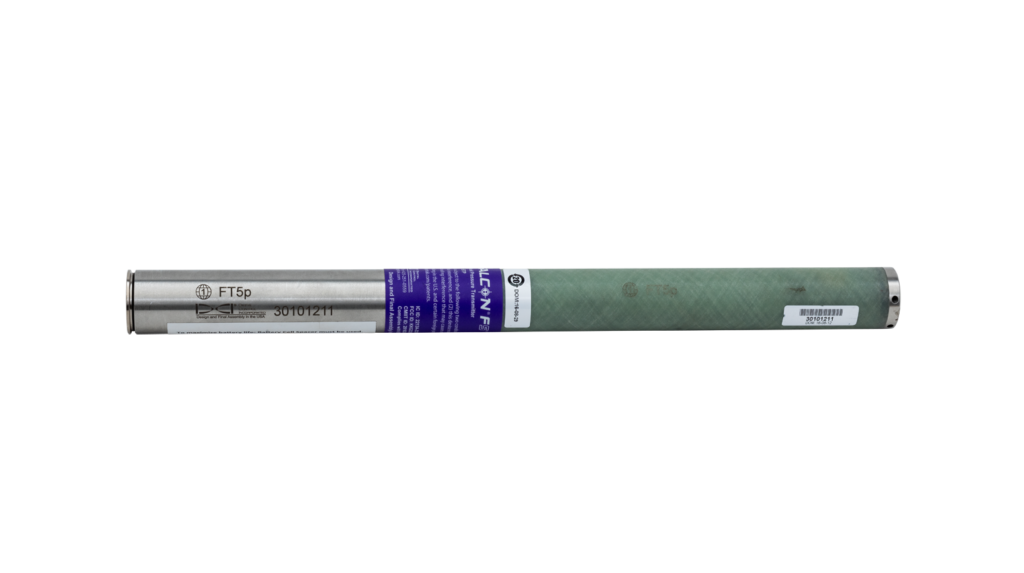

Falcon F5 Transmitters:

• Falcon F5® transmitter supports hundreds of frequencies between .33 kHz – .75 kHz and 4.5 – 45 kHz
• Operators can avoid active and passive interference by choosing the two optimum bands for the current site
• Available in 19, 15, and 8-in lengths

Falcon F2 Transmitters:

• Support hundreds of frequencies between 4.5 and 45 kHz
• Available in 15″ and 8″
• Avoid active interference by choosing the two optimum bands for each job site
• Compatible with Falcon F2 and Falcon F5 systems.

Falcon F1 Transmitters:

• Support dozens of frequencies between 9.0 and 13.5 kHz
• Avoid active interference by optimizing for the current site
• Available in 15″ and 8″

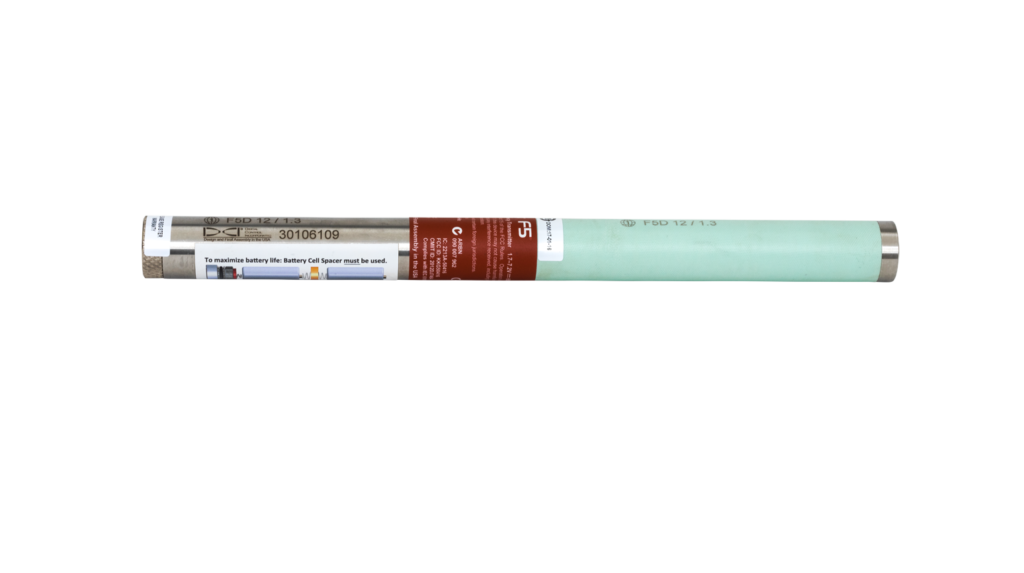

DIGITRAK F5 TRANSMITTERS

Transmitter reliability is an essential element of success for HDD contractors. Transmitter failures result in lost productivity and missed deadlines. DCI designed the first transmitter to send roll and pitch to a receiver and hasn’t stopped innovating since.

• DCI transmitters fit standard housings but may require a battery cap adapter in some cases.
• DCI’s transmitters require three slots equally spaced around the circumference of the drill head for optimal signal emission and maximum battery life
• The Fluid Pressure Transmitter is compatible with most drill housings that let fluid flow from the annulus around the housing to the four sensor ports on the front end cap; slots in the housing will satisfy this requirement. Housings with epoxied slots require a 1/8 in. diameter hole to allow fluid to reach the transmitter’s sensor ports.

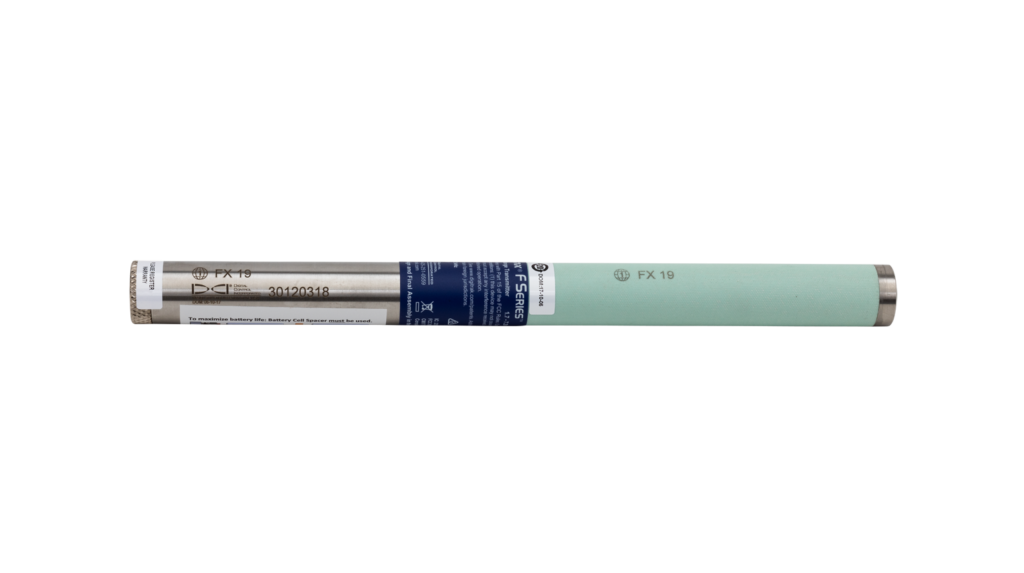

DIGITRAK F-SERIES TRANSMITTERS

DigiTrak F Series™ transmitters are available in two frequencies, as well as cable and short-range options. These transmitters are compatible with F5® and F2® systems.

• All F Series transmitters can be used with both F2 and F5 systems
• F Series transmitters send roll data using a 12-position clock and 0.1% pitch resolution
• The 12 kHz DucTrak™ transmitter for tracking existing non-metallic ducts also works with both F2 and F5 systems.

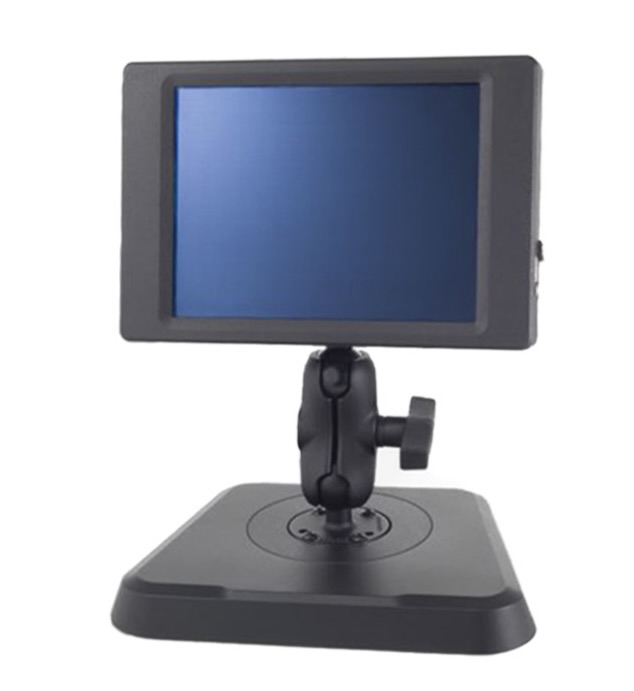

AF8

The Aurora 8.4-in display is available freestanding or panel-mounted. The robust, color touchscreen supports LWD Live, Target Steering, and other applications that increase jobsite productivity.

• Telemetry range: 1800 ft
