SIZE	DESCRIPTION	MIN WALL	O.D.	WEIGHT PER 100′	PALLET QTY
3″	10 FT BE 20 FT BE	.216	3.500	116	880 1760
4″	10 FT BE 20 FT BE	.237	4.500	163	570 1140
5″	10 FT BE 20 FT BE	.258	5.563	221	380 760
6″	10 FT BE 20 FT BE	.280	6.625	286	260 520
* 8″	10 FT BE 20 FT BE	.322	8.625	440	140 280

* 8″ Sch 40 is a non UL listed product

Physical Dimensions

• Underwriters Laboratory, Inc. (UL) UL 651
• National Electrical Manufacturers Association (NEMA) TC-2
• National Electrical Manufacturers Association (NEMA) TC-18

Physical Testing

• American Society for Testing and Materials (ASTM) ASTM F-891

Soild Wall	vs.	So-Lite
✓	Listed for use in Above Ground & Underground Applications	✓
✓	NEMA TC-2	✓
✓	RUS Listed	✓
✓	Passes all UL 651 testing	✓
✓	Tensile Strength	✓
✓	Deflection under Head & Load	✓
✓	Low Temperature Handling	✓
✓	Water Absorption	✓
✓	Resistance to Crushing	✓
✓	Resistance to Impact	✓
✓	Flame	✓
✓	Conduit for use with 90°C wire	✓
✓	Resistance to Specific Reagents	✓
✓	Sunlight Resistance	✓
✓	Pipe Stiffness	✓
✓	Joint Separation	✓
✓	Joint Water Tightness	✓
✓	Elastomeric Materials Accel Aging	✓
✓	Permanency of Printing	✓
✓	Standard Fittings	✓
✓	Long End Bells	✓
	Bell Reference Line	✓
	Chamfered Spigot	✓
	Reduced Weight	✓

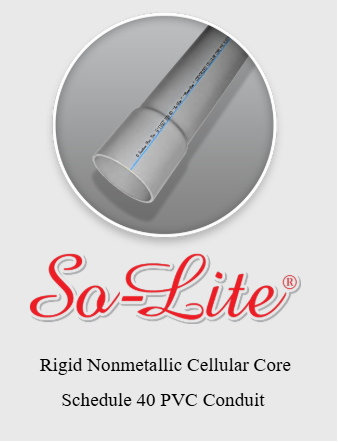

What is Cellular Core?

Cellular core technology uses two extruders to create a conduit composed of three layers: a solid inner, a solid outer, and cellular PVC core. Virgin PVC resin is used to create all layers. The resulting product is lighter weight, yet meets or exceeds all UL 651 testing.

Advantages of So-Lite

Lighter Weight

• Decreases fatigue and installation time

Chamfered Spigot End

• Smooth junctions ensure less wear on conductors during pulls

Bell Reference Line

• Know exactly when pieces are couples properly

Features

• Superior quality control standards
• Standard 10 and 20 foot lengths
• Integral Bell
• Light weight
• Easy field cutting
• Excellent packaging
• Smooth interior wall
• Ultraviolet protection
• Custom lengths available
• Custom markings available
• Custom colors available
• Inside chamfer available
• Outside chamfer available
• Reference marks available

Schedule 40 PVC

SIZE	DESCRIPTION	MIN WALL	O.D.	WEIGHT PER 100′	PALLET QTY
1/2″	10 FT BE 20 FT BE	.109	.840	16	6000 12000
3/4″	10 FT BE 20 FT BE	.113	1.050	22	4400 8800
1″	10 FT BE 20 FT BE	.133	1.315	32	3600 7200
1 1/4″	10 FT BE 20 FT BE	.140	1.660	43	3300 6600
1 1/2″	10 FT BE 20 FT BE	.145	1.900	52	2250 4500
2″	10 FT BE 20 FT BE	.154	2.375	70	1400 2800
2 1/2″	10 FT BE 20 FT BE	.203	2.875	125	930 1860
3″	10 FT BE 20 FT BE	.216	3.500	156	880 1760
3 1/2″	10 FT BE 20 FT BE	.226	4.000	188	630 1260
4″	10 FT BE 20 FT BE	.237	4.500	223	570 1140
5″	10 FT BE 20 FT BE	.258	5.563	310	380 760
6″	10 FT BE 20 FT BE	.280	6.625	395	260 520
* 8″	10 FT BE	.322	8.625	547	140

Schedule 40 Conduit is produced to the following standards:

• Underwriters Laboratory, Inc. (UL) UL 651
• National Electrical Manufacturers Association (NEMA) TC-2
• National Electrical Manufacturers Association (NEMA) TC-18
• Federal Specification WC-1094-A

* 8″ Sch 40 is a non UL listed product
Rated for 90°C
UL listed
RUS listed

Schedule 80 PVC

SIZE	DESCRIPTION	MIN WALL	O.D.	WEIGHT PER 100′	PALLET QTY
1/2″	10 FT BE 20 FT BE	.147	.840	21	6000 12000
3/4″	10 FT BE 20 FT BE	.154	1.050	28	4400 8800
1″	10 FT BE 20 FT BE	.179	1.315	41	3600 7200
1 1/4″	10 FT BE 20 FT BE	.191	1.660	57	3300 6600
1 1/2″	10 FT BE 20 FT BE	.200	1.900	69	2250 4500
2″	10 FT BE 20 FT BE	.218	2.375	97	1400 2800
2 1/2″	10 FT BE 20 FT BE	.276	2.875	148	930 1860
3″	10 FT BE 20 FT BE	.300	3.500	197	880 1760
3 1/2″	10 FT BE 20 FT BE	.318	4.000	241	630 1260
4″	10 FT BE 20 FT BE	.337	4.500	288	570 1140
5″	10 FT BE 20 FT BE	.375	5.563	401	380 760
6″	10 FT BE 20 FT BE	.432	6.625	551	260 520

Schedule 80 Conduit is produced to the following standards:

• Underwriters Laboratory, Inc. (UL) UL 651
• National Electrical Manufacturers Association (NEMA) TC-2
• National Electrical Manufacturers Association (NEMA) TC-18
• Federal Specification WC-1094-A

Rated for 90°C
UL listed
Sunlight Resistant
